SCHUNK - Magnetic gripper EMH, size: RP 036, electric

품목 번호: RBTX-SNK-0076

EMH is an electropermanent magnetic gripper for energy-efficient handling of ferromagnetic workpieces. It ensures reliable holding force retention in the event of an emergency stop. Its compact design, low weight and high forces make it reliable and highly flexible.

Usual delivery time: 3 weeks

Max Gripping force
530
N
Weight
1
kg

신제품 하이라이트

RBTX tool ICON v1 lil -svg

Technical details

  • Holding force [N] - 530

  • Magnetic surface [cm²] - 6.08

  • Payload with horizontal magnetic surface [kg] - 8.5

  • Payload with vertical magnetic surface [kg] - 3.5

  • Module temperature increase at 5 activations/minute [°C] - 10

  • Module temperature increase at 15 activations/minute [°C] - 25

  • Activation time [ms] - 300

  • Min. ambient temperature [°C] - 5

  • Max. Ambient temperature [°C] - 50

  • Dead weight [kg] - 1

  • Protection class IP - 52

  • Rated voltage [V] - 24

  • Voltage type - DC

  • Max. Current Power [A] - 3.1

  • Max. Current Power [A] - 0.15

  • Controller electronics - integrated

2023-07-27 16 41 47--FWEBP-B1440 (1315×1440) und 9 weitere Seiten - Geschäftlich – Microsoft​ Edge

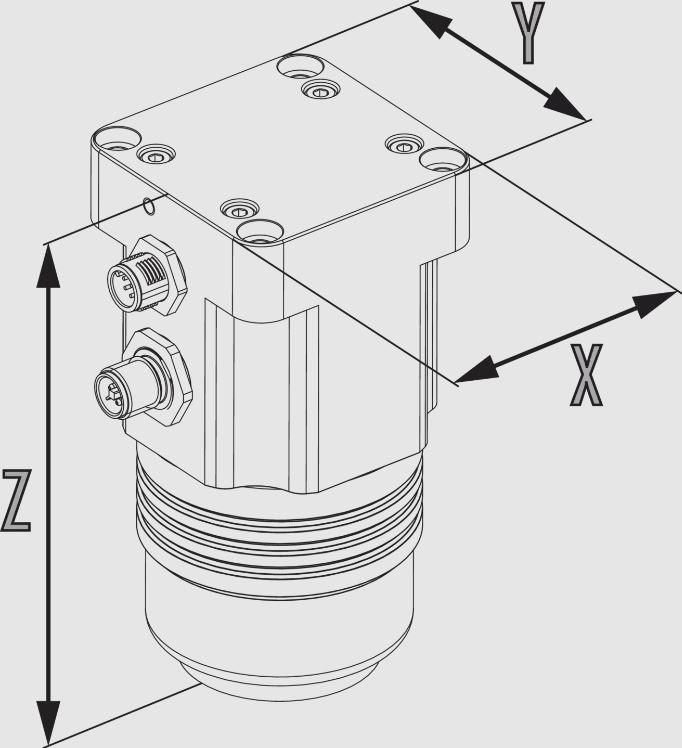

치수
