Name: 4-axis delta robot | working diameter 1,000 mm | with rotary axis
Brand: igus®
SKU: RBTX-IGUS-0275
Price: 52,098,782.40 GBP
Availability: InStock

fairBanner

CommunityDesignLink

showCommunityLink

rbtxpert-button-de

rbtxpert-button-us

<b>Delta robot - 4 degrees of freedom 1000 mm</b>
<p>
igus offers Delta robots for a wide variety of tasks. The 4-axis Delta LCA-DR1000-04 was specially developed for fast pick & place tasks and is optionally available with a suitable controller. With a reach of 1,000 mm and a pick rate of 96 picks/minute, it sets new standards for cost-effective automation. The combination of precision and speed makes this robot ideal for end-of-line applications. Thanks to the additional degree of freedom, components can not only be gripped but also oriented.</p>

The weight of an end effector will decrease the available payload of your robot.

4-axis delta robot | working diameter 1,000 mm | with rotary axis

Robots

RBTX-IGUS-0274

Integrating a fourth axis into a Delta robot offers numerous benefits that significantly enhance the robot's efficiency and flexibility:

These advantages make Delta robots with a fourth axis a valuable addition to modern production environments.

More flexibility with additional axis

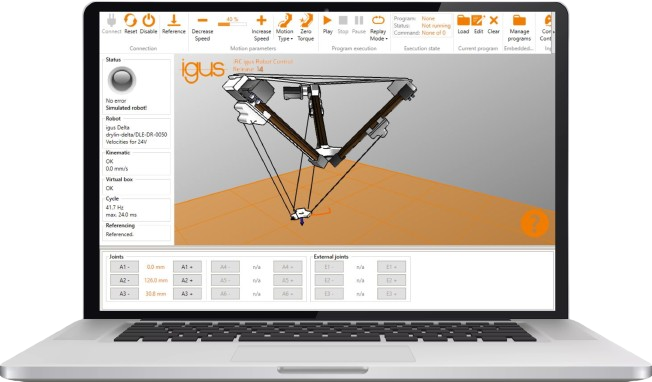

The Software enables simple and intuitive robot control and programming, making it easy to get started with automation. The modular design makes it possible to control different igus kinematics, for example Delta robots. The Delta robot can be controlled directly by our igus® Robot Control with all its advantages. The free and license-free igus Robot Control software is integrated into the control system and thus uses a uniform operating concept and consistent communication services for many components of a system. This means less project planning effort and faster commissioning.

Download now and try it out in advance
